Product Brief

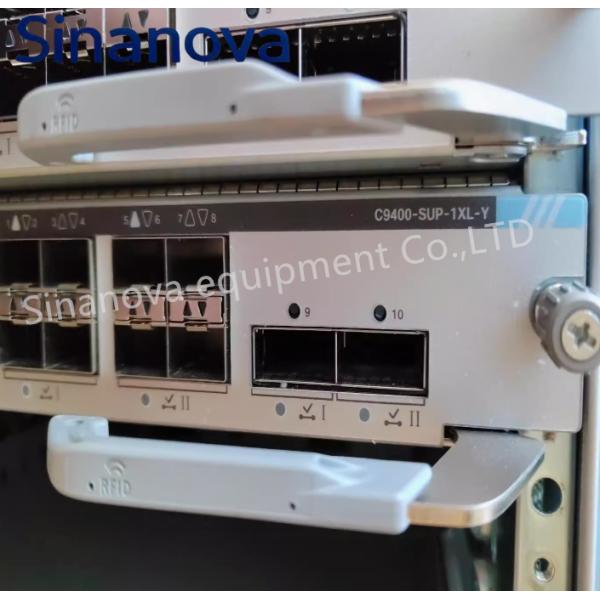

The Cisco C9400-SUP-1XL is a high-performance supervisor engine designed for the Cisco Catalyst 9400 Series modular switches. It offers enhanced scalability, programmability, and resiliency, making it ideal for large-scale enterprise core and aggregation networks. With up to 960 Gbps system bandwidth, it is built to support next-generation networking demands including Cisco SD-Access, DNA Center, and full-stack security.
Product Details
The C9400-SUP-1XL delivers twice the bandwidth of the standard C9400-SUP-1, supporting up to 480 Gbps per slot. It comes with a powerful 8-core x86 CPU, enhanced memory, and full support for encrypted traffic analytics, NetFlow, and telemetry. With Cisco IOS XE software, this supervisor enables advanced automation, policy enforcement, and Zero Trust security. Features like Stateful Switchover (SSO) and Nonstop Forwarding (NSF) ensure high availability in mission-critical networks.
Key Features
Supervisor engine with up to 960 Gbps system bandwidth
Up to 480 Gbps per slot for high-density line card support
Ideal for enterprise campus core and large aggregation layers
Integrated 8-core x86 CPU with enhanced DRAM and flash memory
Supports Cisco DNA Center and SD-Access architecture
Encrypted Traffic Analytics (ETA) and TrustSec for secure segmentation
NSF and SSO for nonstop network operations
Cisco IOS XE for full-stack programmability
Product Specifications
| Parameter | Specification |
| Model | Cisco C9400-SUP-1XL |
| Type | Supervisor Engine for Catalyst 9400 Series |
| System Bandwidth | Up to 960 Gbps |
| Slot Bandwidth | Up to 480 Gbps per slot |
| CPU | 8-core x86 processor |
| Memory | 16 GB DRAM, 16 GB Flash |
| High Availability | NSF, SSO |
| Software | Cisco IOS XE |
| Uplink Ports | 1x 1G/10G/40G uplink, 1x management port |
| Management Tools | Cisco DNA Center, NetFlow, SNMP, Telemetry |
| Operating Temperature | 0°C to 45°C |
Similar Models Specifications
| Model | Max Bandwidth | Slot Bandwidth | CPU Type | HA Support | Use Case |
| C9400-SUP-1 | 480 Gbps | 240 Gbps | 8-core x86 | NSF, SSO | Standard enterprise deployments |
| C9400-SUP-1XL | 960 Gbps | 480 Gbps | 8-core x86 | NSF, SSO | High-performance, scalable core |
| C9400X-SUP-2 | 2.4 Tbps | 960 Gbps | Enhanced x86 | NSF, SSO | Large-scale, high-speed networks |
